Archive for the ‘Setup’ Category

SharePoint News – Download SharePoint Server 2016 preview now

August 27, 2015 Leave a comment

microsoft_logo_56x56

SharePoint Server 2016 Preview

Yes! SharePoint Server 2016 has finally been released as a preview installation

Long awaited for, longed for by many, feared by the competition…

On  the 24th of august, Microsoft released a preview of the next generation of SharePoint onprem, SharePoint Server 2016. Last I Heard, the release is due sometime Q1 – Q2 of 2015.
Make sure that you have room, the ISO alone is 2.84GB in size…

DOWNLOAD
(Or go straight to the ISO download)

Prerequisites, it will run on

•Windows Server 2012 R2
•Windows Server Technical Preview 2

About the Product from Microsoft

SharePoint Server 2016 IT Preview has been designed, developed, and tested with the Microsoft Software as a Service (SaaS) strategy at its’ core.
Drawing extensively from that experience, SharePoint Server 2016 IT Preview is designed to help you achieve new levels of reliability and performance, delivering features and capabilities that simplify administration, protect communications and information, and empower users while meeting their demands for greater business mobility.
You can choose from a traditional on-premises deployment, a hosted service with Microsoft Office 365 sites powered by Microsoft SharePoint Online, deployment in Azure Infrastructure as a Service (IaaS), or a mix of these options with a hybrid approach, enabling you to enrich traditional on-premises scenarios with the innovation in the cloud.
Need more information about SharePoint Server 2016 IT Preview? See the  product details page.SharePoint Server 2016 IT Preview builds on the investments of previous SharePoint releases to help:
1.Lower IT costs with a cloud inspired infrastructure and scalable collaboration platform
2.Better manage risk by safeguarding your business with secure and reliable capabilities
3.Deliver modern collaboration experiences across devices and screens’

To install SharePoint Server Preview

1.Review SharePoint Server 2013  system requirements
2.Download and install full-featured software for a 180-day trial
3.When prompted, use the following product key: NQTMW-K63MQ-39G6H-B2CH9-FRDWJ



References and Credits

Myself, I get all the credit this time as well! 🙂

   _________________________________________________________

Enjoy!

Regards

Twitter | Technet Profile | LinkedIn

Office 365 News – Unannounced Microsoft change to SharePoint Online access

February 17, 2015 2 comments

 Office365logo       SP2013logo

Microsoft recently made a change to the way users can access SharePoint Online, this may affect many thousands of customers without them knowing…

Licensex

It has been disclosed to me that Microsoft has implemented a change on all Office 365 tenants to the way an unlicensed user can access SharePoint Online services…in a bad way…

Previously, the behaviour was that if you did not give a user a the SharePoint license in Office 365, the user could not access SharePoint.
This is the expected behaviour and this is how most companies restricted access to SharePoint Before they were ready to offer the service to their organizations.
This is no more, or at least not the current behaviour…Microsft has ‘temporarily’ made a change that allows ALL users, with a license or not to have access to all SharePoint Services.
The imidiate affect may be that your organization sleeps safely in the belief that SHarePoint may not be accessed, except by you in IT or by a limited number of individuals, meanwhile, the users go crazy and start using SharePoint in ways you never intended…

Well, this is something I don’t like, I would like this change to be limited to the ones who specifically asked for it, and if you needed it, you could request it, not the other way around.

Note 1: If you find that you do not want this behaviour, you want access only to your licensed users. Open a Service Request with Microsoft and ask them to change it back, they will help you then.

Note 2: The change does not affect OneDrive for Business, unprovisioned users do not get access to their ODfB without the SharePoint license.

The reason given by Microsoft representatives is this: Microsoft recognizes assigning licenses to users that are synced to the O365 services is cumbersome for larger tenants, to alleviate this pain point; a temporary change has been released to SharePoint Online that will allow users to access SharePoint Online even without license.’



References and Credits

None at this time…

Credits & many thanks to

Pihlen!



SP2013logo

_________________________________________________________

Enjoy!

Regards

Twitter | Technet Profile | LinkedIn

A quick-guide to setting up OWA with SharePoint 2013 – start to finish

October 15, 2013 9 comments

Future and existing Office Web Apps – OWA Lovers!
😁
This time, I just found that a quick guide like this was something that I needed myself, and since I could not find anything that was short and compact enough, I made my own guide…
This Little guide is completely based on the TechNet articles mentioned in the references section, but this is nontheless a lot shorter and easier to follow.

Oakwood_clockx

The old Clock at Oakwood station



Click your OWA task of choice:
Step 1
Prepare a 2008 R2 Server to run OWA
Prepare a 2012 Server to run OWA
Step 2
Install Office Web Apps Server
Step 3
Deploy a single-server Office Web Apps Server farm that uses HTTPS
Step 4
Configure SharePoint to use OWA over https (recommended)
Configure SharePoint to use OWA over http
Additional
Disconnect SharePoint from OWA farm
Configure the Default open behavior for documents
Credits and References




Prepare a 2008 R2 server to run Office Web Apps Server

1. Install the following software (Minimum required):

2. Import the server module
(In a PowerShell prompt running as administrator and with the SharePoint snapin loaded)
Import-Module ServerManager

3. Add the required Features and Roles by running this command:
Add-WindowsFeature Web-Server,Web-WebServer,Web-Common-Http,Web-Static-Content,Web-App-Dev,Web-Asp-Net,Web-Net-Ext,Web-ISAPI-Ext,Web-ISAPI-Filter,Web-Includes,Web-Security,Web-Windows-Auth,Web-Filtering,Web-Stat-Compression,Web-Dyn-Compression,Web-Mgmt-Console,Ink-Handwriting,IH-Ink-Support

4. Restart the server if prompted when the command finishes.

5. Done

TechNet Reference
Back to menu




Prepare a 2012 server to run Office Web Apps Server

1. In a PowerShell prompt running as administrator, add the required Features and Roles by running this command:
Add-WindowsFeature Web-Server,Web-Mgmt-Tools,Web-Mgmt-Console,Web-WebServer,Web-Common-Http,Web-Default-Doc,Web-Static-Content,Web-Performance,Web-Stat-Compression,Web-Dyn-Compression,Web-Security,Web-Filtering,Web-Windows-Auth,Web-App-Dev,Web-Net-Ext45,Web-Asp-Net45,Web-ISAPI-Ext,Web-ISAPI-Filter,Web-Includes,InkandHandwritingServices

2. Done

TechNet Reference
Back to menu



Install Office Web Apps Server
1. Download Office Web Apps Server from the Microsoft Download Center (Link).

2. Run Setup and walk through the steps in the wizard.
Windows Server 2012, open the .img file directly and run Setup.exe
Windows Server 2008 R2 SP1, use any program that can mount or extract .img files. Then run Setup.exe

3. Download and install the Office Web Apps Server update KB2810007.

TechNet Reference
Back to menu



Deploy a single-server Office Web Apps Server farm that uses HTTPS

If components of the .NET Framework 3.5 were installed and then removed, you might see “500 Web Service Exceptions” or “500.21 – Internal Server Error” messages when you run OfficeWebApps cmdlets. To fix this, run the following sample commands from an elevated command prompt to clean up settings that could prevent Office Web Apps Server from functioning correctly:
In Windows Server 2008 R2:
%systemroot%\Microsoft.NET\Framework64\v4.0.30319\aspnet_regiis.exe -iru
iisreset /restart /noforce
In Windows Server 2012:
dism /online /enable-feature /featurename:IIS-ASPNET45

1. Create the Office Web Apps Server farm

New-OfficeWebAppsFarm -InternalUrl <InternalURL> -ExternalUrl <ExternalURL> -CertificateName <CertificateName> -EditingEnabled

<InternalURL> FQDN name of the server that runs Office Web Apps Server
<ExternalURL> FQDN name that can be accessed on the Internet
<CertificateName> Is the friendly name of the https/SSL certificate used
-EditingEnabled, optional and is added to enable editing in Office Web Apps

2. Verify that the Office Web Apps Server farm was created successfully

Go to the https://internal.url.com/hosting/discovery
If you see a (WOPI)-discovery XML file in your web browser then all is good.

Depending on the security settings of your web browser, you might see a message that prompts you to select Show all content before the contents of the discovery XML file are displayed.

3. Done

TechNet Reference
Back to menu



Configure SharePoint to use OWA over https (recommended)
(In a PowerShell prompt running as administrator and with the SharePoint snapin loaded)

The Web Application to be used must be configured to use Claims as authentication method, else OWA will not work.

1. Create new binding:
New-SPWOPIBinding -ServerName <WacServerName>
(<WacServerName> must be the FQDN internal URL)

2. Verify current zone:
Get-SPWOPIZone

3. Change to internal-https if it is set to http:
Set-SPWOPIZone –zone “internal-https

4. Verify https:
Get-SPWOPIZone

5. Verify functionality in a document library (Not using the system account, appearing as sharepoint\system)
Click on the ‘Three dots’ after a documents name and see if you get a preview, if you do, its all good!

6. Done

TechNet Reference
Back to menu



Configure SharePoint to use OWA over http
(In a PowerShell prompt running as administrator and with the SharePoint snapin loaded)

The Web Application to be used must be configured to use Claims as authentication method, else OWA will not work.

1. Create new binding:
New-SPWOPIBinding -ServerName -AllowHTTP
( must be the FQDN internal URL)

2. Verify current zone:
Get-SPWOPIZone

3. Change to internal-http:
Set-SPWOPIZone –zone “internal-http”

4. Verify http:
Get-SPWOPIZone

5. Check AllowoverHttp setting:
(Get-SPSecurityTokenServiceConfig).AllowOAuthOverHttp

6. Set AllowOAuthOverHttp to True.
$config = (Get-SPSecurityTokenServiceConfig)
$config.AllowOAuthOverHttp = $true
$config.Update()

7. Verify change:
(Get-SPSecurityTokenServiceConfig).AllowOAuthOverHttp

8. Verify functionality in a document library (Not using the system account, appearing as sharepoint\system)
Click on the ‘Three dots’ after a documents name and see if you get a preview, if you do, its all good!

9. Done

TechNet Reference
Back to menu



Disconnect SharePoint from OWA farm
(In a PowerShell prompt running as administrator and with the SharePoint snapin loaded)

1. Remove the binding
Remove-SPWOPIBinding –All:$true

2. Done

TechNet Reference
Back to menu



Configure the Default open behavior for documents

1. On a per farm level: Adjust the default open behavior on a per-file-type basis by using the New-SPWOPIBinding and Set-SPWOPIBinding Windows PowerShell cmdlets.

2. On a per Site Collection level by activating the ‘Open Documents in Client Applications by Default’ site Collection feature.

3. On a per Document library level using the Library setting – Advanced setting – ‘Default open behavior for browser-enabled documents’

4. Done

TechNet Reference
Back to menu




References:

Deploy Office Web Apps Server
http://technet.microsoft.com/en-us/library/jj219455.aspx

Configure SharePoint 2013 to use Office Web Apps
http://technet.microsoft.com/en-us/library/ff431687.aspx

Configure the default open behavior for browser-enabled documents (Office Web Apps when used with SharePoint 2013)
http://technet.microsoft.com/en-us/library/ee837425.aspx

Set-SPWOPIBinding
http://technet.microsoft.com/en-us/library/jj219454.aspx

Plan Office Web Apps (Used with SharePoint 2013)
http://technet.microsoft.com/en-us/library/ff431682.aspx

SharePoint authentication requirements for Office Web Apps
http://technet.microsoft.com/en-us/library/ff431682.aspx#authentication

Configuring Office Web Apps in SharePoint 2013 (Steve Peschka – Microsoft)
http://blogs.technet.com/b/speschka/archive/2012/07/23/configuring-office-web-apps-in-sharepoint-2013.aspx

Enabling Licensing and Editing for Office Web Apps in SharePoint 2013 (Steve Peschka – Microsoft)
http://blogs.technet.com/b/speschka/archive/2012/12/31/enabling-licensing-and-editing-for-office-web-apps-in-sharepoint-2013.aspx

Thanks to:

Mattias Gutke! All the time dude!
Ankie D – a great customer who has forced me to learn more on OWA
Stefan K – Another customer who made me refresh my knowledge
Steve Peschka, he wrote the original guide…see ref section


___________________________________________________________________________________________________

Enjoy!

Regards

Twitter | Technet Profile | LinkedIn

Move your SharePoint IIS sites from the systemdrive(C:)

August 31, 2013 3 comments

Move your SharePoint IIS sites from the systemdrive(C:)
or avoid putting them there in the first Place.

Lionx

Do you see the lion that is totally in the wrong Place…or is it the Jeeps that are…?

Deal fellow SharePointlovers!

This time, I’ll try to show you how to avoid the messed up situation most SharePoint installations are in, with everything on the systemdrive, or C:
Now, us people have over time been better and better at one thing, we understand that the logfiles should not be located on the systemdrive, so we have learned over time to move the ULS log and the Usage and Health log from C:, some have even been clever enough to move even the IIS log from C:

But, what do we still always, always, always, find installed on C:?… … …yes, C:\inetpub!

It not very strange though, the developers of Windows Server have made a point out of not giving us an option to install inetpub on a different path, not unless you do an unattended installation or otherwise script or Control your installation. The ‘Add/Remove roles’ wizards in Server 2008, 2008R2 and 2012 all lack this option (for a reason).

BUT! This is intentially, the default inetpub location should and must be in the systemdrive, IIS is considered an operating system Component and has to be there for a number of reasons. At the end you will find a link to a KB article that explains this in more detail. Leave inetpub and its subfolders where it is!

So, why would we want to do this anyway
why move the inetpub and all of its content, or at least the separate site catalogs to a different drive?
– Separation (Performance and Security)
– Compartmentalization (Performance and Security)
Having averything on the same drive is bad for a few reasons, primarily performance and security. Perfomance since the OS is on the C drive and security because if an attacker by some means gets access to a different less secure applications sitecatalog, they also get access to the systemdrive and possible also all other webapplication sitecatalogs. Moving them to other drives, same or different, helps mitigate both possible issues.
I therefore recommend doing this:

Do your regular installation, add the Web Server role and let the inetpub folder end up on C:, like I said, no worries. Whats important for us will not be located there anyway.
Next, edit the registry to make the default location of inetpub be for example D: (unless this is were you will be putting all of your logfiles, then select a third or fourth drive)
Install the SharePoint as you would normally do, Central administration will now end up were you pointed the default location.
Create your Web Applications using the GUI or PowerShell and leave out the path, the IIS sites will be were you wanted them.

So, how do we do this in more detail? A Guide…

Configure the Web Server(s)

1. Configure the default location

On all of your web servers in the farm, and on your Central Administration server(s), edit the registry key that Controls the default location:

Start regedit by, Right clicking in the very lower left corner and you will get a list of actions, click on Run.

Reg1x

Type Regedit and click Ok.

Reg2x

Click Yes in the UAC dialog.

Reg3

In Registry Editor, we locate the following path: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\InetStp

Reg4x

Reg5x

Under ‘InetStp’ we have a number of keys.

Reg6x

Locate and Edit the key PathWWWRoot from the default: (%systemdrive%)

Regbeforex

to: (D: or where you prefer to locate it, E: F: G: H:…)

Regafterx

There you go! All set, no IIS reset or restarts of any kind required.
Like said before, go on and do this on all servers that will host a webserver (WFE or CA). If you don’t, then you will have an inconsistent setup making Everything very hard to setup and t-shoot.

2. Add SharePoint
After this has been changed on all of you r web servers, you can go ahead and install the SharePoint binaries and configure your farm, The Central Administration site will now be located on the drive you have specified, it will be in the exact same path as it normally would but on a different drive. For example: ‘D:\inetpub\wwwroot\wss\VirtualDirectories\20000\’

Note that the Central Administration UI will now be default suggest a different path:

NewWeb1x

If you create a new site using PowerShell, it will also by default put it in D: even if you don’t specify any path:

New-SPWebApplication -Name TheVeryFirst -ApplicationPool SharePoint -HostHeader theveryfirst.corp.balkestahl.se -Port 80 -Url theveryfirst.corp.balkestahl.se -DatabaseServer blksthl-sql -DatabaseName SP11_Content_TheVeryFirst

As you can see, were done! 🙂

Donex

For the logfiles, I’ll make a separate post, they should also be moved, more so even than the sitefolders. Logfiles will fill up the disks, they will slow performance and maybe most importantly, they contain delicate information that you want to keep separated from the OS and IIS.

References:

Guidance for relocation of IIS 7.0 and IIS 7.5 content directories
http://support.microsoft.com/kb/2752331

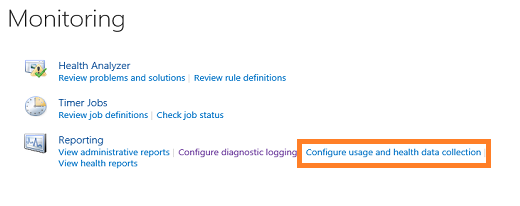

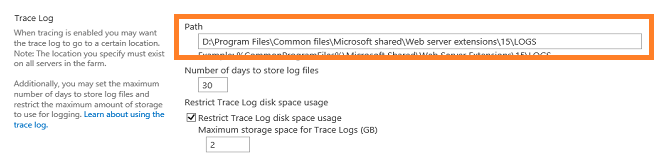

Configure ULS log and Usage and Health log location
https://blog.blksthl.com/2013/06/05/configure-uls-log-and-usage-and-health-log-location/

Thanks to:

Mikael Nyström (The Deployment Bunny) – Truesec
Mattias Gutke – CAG


___________________________________________________________________________________________________

Good Luckl!!

Regards

Twitter | Technet Profile | LinkedIn
