Whitepaper: The final guide to Alternate Access Mappings

October 17, 2012 2 comments

This 45 page Guide is now available as a Free PDF download from Microsoft Technet Gallery.
Download : The final guide to Alternate Access Mappings

A preview of the whitepaper:


_________________________________________________________

Enjoy!

Regards

Twitter | Technet Profile | LinkedIn

Site Settings by PowerShell part 1.1 Delete navigation nodes

February 14, 2012 Leave a comment

This time I will give you a sample script that will enumerate all of your subwebs and remove a node from the current navigation.
A very useful script if you have a large and complec site structure and when you want to change the global or current navigation.

In my example, I am enumerating all subwebs of my sitecollection, and in the current navigation of every subweb, I remove the ‘Ste Pages’ link that you get from enabling publishing. If you want to remove a different link, find the ID of that link and replace or add a $currentnode… to the script.

Since my users have no use for the ‘site pages’ link, I’ll simply remove it from navigation.

# get a sitecollection object(SPSite)
$SPSite = Get-SPSite -Identity “http://farm.company.local/sitecollection“
# loop through all the subwebs(SPWebs) in the site collection
foreach ($SPWeb in $SPSite.AllWebs)
{
# Get a navigation node object and delete it
$currentnode = $SPWeb.Navigation.GetNodeByID(2001)
$currentnode.Delete()
# Make it stick...
$SPWeb.Update()
Write-Host “Removing the Node: ” $currentNode.URL
}

A comlex way of finding out a nodes ID, is to do as follows:

$SPWeb = Get-SPWeb "http://farm.company.local/sitecollection/Web"

(Check in site settings/Navigation what the url for the node is, for example:)

$currentnode = $web.Navigation.GetNodeByUrl
("site/Web/SharedDocuments/Forms/AllItems.aspx")
$currentnode.ID

That will probably give you the ID 2002 for ‘Shared Documents’

Thats it!

Good luck.

Site Settings by Powershell part 1 – Navigation

February 12, 2012 11 comments

Configuring your site settings is really something that you want to do using PowerShell, this is for many reasons but the most obvious ones are that you get more control. You can test your script with settings in a test environment and see the effect, when it is perfected you simply run the script against a different URL and the result is moved to the proper target environment.
One more benefit is repeatability, you can do one configuration and repeat it for every site or web in your farm. Doing the same thing manually would take time and would increase the risk of making mistakes.
(See more Site settings by Powershell in my Whitepaper that can be downloaded from here: SharePoint 2010 Site Settings explained. I have tried to cover most every site setting and how it can be done using Powershell only. )

All of these settings can also be configured during site creation, in order to do that, get your publishingweb object of the websites you are creating, set the values and same as always, finish off with an update().

In this post I will try to cover most of the settings you can do in the Navigation part of your site settings. The Navigation settings are available only in sites in a site collection that has the SharePoint Server Publishing Infrastructure Site Collection Feature activated.

Activating this feature gives you among many other things, control over the global and current navigations. These settings are available in Site Settings under Look and Feel.

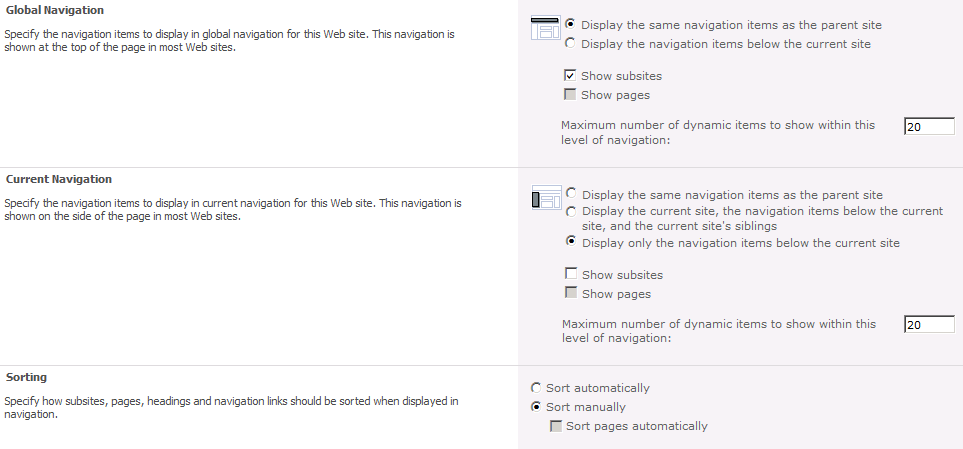

The settings that I will show how to configure using PowerShell are as shown in the below image. There are also ways to add and remove items from the navigations in the same dialog, but these will not be covered here.

First off, we need an object to work with. In this case we need a Publishing Web object, so first we create a spweb object, then a publishing web object:

$SPWeb = Get-SPSPWeb http://server/sitecoll/spweb/spweb
$SPPubWeb = [Microsoft.SharePoint.Publishing.PublishingWeb]
::GetPublishingWeb($SPWeb)

Some changes, like unchecking the Show subsites, require that you first allow unsafe updates. You can set the show subsites to false, but it will never be reflected unless you first allow unsafe updates. This is done on the SPWeb object by:

$SPWeb.AllowUnsafeUpdates = $true

Using our Publishing Web object, we can now configure the different settings, from the top in the graphical user interface:

Global Navigation

Display the same navigation items as the parent site:

$SPPubWeb.Navigation.InheritGlobal = $true

Display the navigation items below the current site:

$SPPubWeb.Navigation.InheritGlobal = $false

Show subsites:

$SPPubWeb.Navigation.GlobalIncludeSubSites = $true

Show pages:

$SPPubWeb.Navigation.GlobalIncludePages = $true

Maximum number of dynamic items to show within this level of navigation:

$SPPubWeb.Navigation.GlobalDynamicChildLimit = 20 (int32)

Current Navigation

Display the same navigation items as the parent site: (both values in combination)

$SPPubWeb.Navigation.InheritCurrent = $true
$SPPubWeb.Navigation.ShowSiblings = $false

Display the current site, the navigation items below the current site, and the current site’s siblings: (both values in combination)

$SPPubWeb.Navigation.InheritCurrent = $false
$SPPubWeb.Navigation.ShowSiblings = $true

Display only the navigation items below the current site: (both values in combination)

$SPPubWeb.Navigation.InheritCurrent = $false
$SPPubWeb.Navigation.ShowSiblings = $false

Show subsites:

$SPPubWeb.Navigation.CurrentIncludeSubSites = $true

Show pages:

$SPPubWeb.Navigation.CurrentIncludePages = $true

Maximum number of dynamic items to show within this level of navigation:

$SPPubWeb.Navigation.CurrentDynamicChildLimit = 20 (int32)

Sorting

Sort automatically:

$SPPubWeb.Navigation.OrderingMethod = "Automatic"

Sort manually:

$SPPubWeb.Navigation.OrderingMethod = "Manual"

Sort sites manually and pages automatically: (This is option is only available with publishing pages)

$SPPubWeb.Navigation.OrderingMethod = "ManualWithAutomaticPageSorting”

When Sort automatically is selected

Sort by Title (shown left):

$SPPubWeb.Navigation.AutomaticSortingMethod = "Title"

Sort by Created Date:

$SPPubWeb.Navigation.AutomaticSortingMethod = "CreatedDate"

Sort by Last Modified Date:

$SPPubWeb.Navigation.AutomaticSortingMethod = "LastModifiedDate"

Sort in ascending order (shown left):

$SPPubWeb.Navigation.SortAscending = $true

Sort in descending order:

$SPPubWeb.Navigation.SortAscending = $false



That’s it, that covers all of the settings I meant to show and this will hopefully be useful to you when scripting the creation and configuration of your sites.
In order to help you get started, you can modify the script included below and that will allow you to configure all of the above settings the same way on all sites in a designated site collection.

Sample script

# get a sitecollection object(SPSite)
$SPSite = Get-SPSite -Identity “http://farm.company.local/sitecollection“
# loop through all the subwebs(SPWebs) in the site collection
foreach ($SPWeb in $SPSite.AllWebs)
{
  # check so that this is not the root web
  if (!$SPWeb.IsRootWeb)
  {

 # Save AllowUnsafeUpdates setting and set it to allow.
    $AllowUnsafeUpdatesStatus = SPWeb.AllowUnsafeUpdates
 SPWeb.AllowUnsafeUpdates = $true
 # Get a PublishingWeb object for the current web
    $SPPubWeb = [Microsoft.SharePoint.Publishing.PublishingWeb]
 ::GetPublishingWeb($SPWeb)

    # UnComment the setting you will use:
    # Global settings
    # $SPPubWeb.Navigation.InheritGlobal = $true
    # $SPPubWeb.Navigation.InheritGlobal = $false
    # $SPPubWeb.Navigation.GlobalIncludeSubSites = $true
    # $SPPubWeb.Navigation.GlobalIncludeSubSites = $false
    # $SPPubWeb.Navigation.GlobalIncludePages = $true
    # $SPPubWeb.Navigation.GlobalIncludePages = $false
    # $SPPubWeb.Navigation.GlobalDynamicChildLimit = 20
    # Current settings
    # See combination of the two below
    # $SPPubWeb.Navigation.InheritCurrent = $true
    # $SPPubWeb.Navigation.ShowSiblings = $false
    # $SPPubWeb.Navigation.CurrentIncludeSubSites = $true
    # $SPPubWeb.Navigation.CurrentIncludePages = $true
    # $SPPubWeb.Navigation.CurrentDynamicChildLimit = 20
    # Sorting
    # $SPPubWeb.Navigation.OrderingMethod = "Automatic"
    # $SPPubWeb.Navigation.OrderingMethod = "Manual"
    # $SPPubWeb.Navigation.OrderingMethod = "ManualWithAutomaticPageSorting”
    # $SPPubWeb.Navigation.AutomaticSortingMethod = "Title"
    # $SPPubWeb.Navigation.AutomaticSortingMethod = "CreatedDate"
    # $SPPubWeb.Navigation.AutomaticSortingMethod = "LastModifiedDate"
    # $SPPubWeb.Navigation.SortAscending = $true
    # $SPPubWeb.Navigation.SortAscending = $false
    $SPPubWeb.Update()
  }
  # cleanup
 # Set AllowUnsafeUpdates back to original value
 $SPWeb.AllowUnsafeUpdates = $AllowUnsafeUpdatesStatus
  $SPWeb.Dispose() }
# cleanup
$SPSite.Dispose()

Please allow some time for the changes to take affect, it can take a couple of minutes until the changes are reflected in your navgation.

Reference:

PortalNavigation Members

http://msdn.microsoft.com/en-us/library/microsoft.sharepoint.publishing.navigation.portalnavigation_members.aspx

2012-02-16 Updates: Added $SPWeb.AllowUnsafeUpdates section to script.
